Nut Packaging Material Guide: Selecting Between Plastic Laminates and Aluminum Foil

Key Takeaways

• Aluminum foil laminate barriers: Multi-layer structures incorporating aluminum foil provide maximum resistance against oxygen and moisture ingress, making them essential for high-oil nuts vulnerable to rapid lipid oxidation.
• Transparent PET/PE films: Standard PET/PE laminates deliver foundational moisture-proof protection and complete product visibility, offering a cost-effective solution for high-turnover nut varieties that do not require total light blocking.
• Metallized BOPP/VMPET/PE options: Metallized film combinations provide intermediate barrier performance against humidity and oxidation while accommodating transparent display windows for visual inspection of the contents.
• Specification alignment framework: Selecting between plastic laminates and foil substrates requires balancing the oil profile and distribution cycle of specific nuts against barrier performance and material costs to prevent premature spoilage.

Introduction

High lipid concentrations in tree nuts create a persistent preservation challenge during commercial distribution. Exposure to ambient oxygen, humidity, and light rapidly triggers oxidative rancidity and off-flavors, making barrier integrity the decisive factor when specifying a nut packaging material.

Packaging engineers and procurement teams typically face a structural trade-off between consumer visibility and maximum barrier capability. Transparent structures such as a PET PE laminate for snacks provide reliable moisture resistance packaging and direct product presentation, which works well for rapid-turnover retail items. Conversely, vulnerable high-oil varieties like macadamias or walnuts require the gas and light-blocking properties delivered by aluminum foil nut bags to mitigate lipid degradation across extended supply chains.

Balancing product turnover rates and fatty acid profiles against raw material costs is essential to prevent over-engineering standard lines or under-protecting sensitive inventory. This evaluation examines barrier performance, optical characteristics, and substrate behaviors to help technical buyers determine whether transparent plastic laminates or foil-backed structures best match their specific shelf-life and processing requirements.

Primary Spoilage Pathways and Barrier Demands for Nut Packaging Material

Tree nuts and edible kernels represent chemically dense, nutrient-rich commodities characterized by high lipid concentrations, low inherent moisture levels, and active porous cellular matrices. Because of these biological characteristics, packaging for wholesale or retail distribution cannot function merely as an inert physical container. Instead, it must serve as an engineered mass-transfer barrier designed to mitigate thermodynamic exchange between the interior package atmosphere and fluctuating ambient environments. Selecting an appropriate nut packaging material requires an understanding of the primary environmental catalysts that trigger rapid quality loss: molecular oxygen, atmospheric water vapor, and actinic light radiation.

Environmental stressors drive specific deterioration pathways that require targeted structural counter-measures. Ambient oxygen promotes free-radical lipid oxidation, peroxide value elevation, and volatile hexanal formation, demanding vacuum or nitrogen-flushed atmospheres protected by ultra-low OTR substrates. Atmospheric water vapor causes crispness loss, textural softening, enzymatic reactivation, and mold risk, which requires low-WVTR sealants, barrier foils, and hermetic seal integrity. Light and ultraviolet radiation trigger photo-catalytic rancidity and pigment degradation, necessitating metallized films, solid foil cores, or UV-absorbing outer layers.

Unsaturated Fatty Acid Profiles and Oxygen Sensitivity

The fundamental vulnerability of tree nuts resides in their lipid fractions, which frequently constitute over 50% to 75% of the total dry kernel weight depending on the species. These lipids consist primarily of triacylglycerols containing high proportions of monounsaturated fatty acids (MUFA), such as oleic acid (C18:1), and polyunsaturated fatty acids (PUFA), such as linoleic acid (C18:2) and alpha-linolenic acid (C18:3). PUFA structures feature methylene carbons located between conjugated or unconjugated double bonds. The hydrogen atoms attached to these bis-allylic methylene carbons possess lower bond-dissociation energies, making them susceptible to homolytic hydrogen abstraction initiated by thermal energy, residual metallic catalysts, or photo-sensitizers.

Once a hydrogen atom is abstracted from a bis-allylic methylene carbon, a carbon-centered alkyl radical intermediate forms and reacts rapidly with molecular oxygen (O2) to generate peroxy radicals. These peroxy radicals subsequently abstract hydrogen from neighboring unsaturated fatty acid chains, propagating a self-sustaining radical cascade termed auto-oxidation. The primary oxidation products—unstable lipid hydroperoxides—eventually undergo homolytic cleavage of the oxygen-oxygen bond, fragmenting into low-molecular-weight secondary oxidation volatiles including aldehydes (such as hexanal, propanal, and 2,4-decadienal), ketones, short-chain carboxylic acids, and alcohols. These volatile compounds generate distinct rancid flavors, pungent odors, and sharp sensory defects, causing consumer rejection even at parts-per-billion concentrations.

The auto-oxidation reaction progresses through three distinct phases:

• Initiation: RH + Initiator → R• + H+
• Propagation: R• + O2 → ROO•, followed by ROO• + RH → ROOH + R•
• Decomposition: ROOH → RO• + •OH → Aldehydes (Hexanal), Ketones, Acids

To limit this degradation cascade, the packaging structure must exhibit a controlled Oxygen Transmission Rate (OTR). While low-fat dry goods may tolerate higher atmospheric transmission rates, nuts with high PUFA content require continuous limitation of headspace oxygen throughout their intended distribution cycles. When primary packaging utilizes vacuum extraction or modified atmosphere packaging (MAP)—such as active nitrogen (N2) displacement designed to suppress residual headspace O2 below 1.0% to 2.0%—the barrier substrate must retain this inert micro-environment. If the structural barrier possesses an inadequate OTR, passive diffusion driven by the partial pressure differential across the film boundary will replenish internal O2 concentrations, accelerating hydroperoxide formation and elevating peroxide values (PV) alongside free fatty acid (FFA) levels.

Equilibrium Relative Humidity and Moisture Vapor Permeation

Moisture control represents a co-equal engineering parameter in nut preservation. Freshly roasted or cured kernels are dried to water activity (aw) levels between 0.15 and 0.35, with equilibrium moisture contents typically ranging from 1.5% to 4.5% by weight. At this low thermodynamic state, the cellular matrix of the kernel remains rigid, brittle, and glassy, providing the characteristic crisp texture expected by consumers. When a low-moisture nut product is exposed to ambient environments where the equilibrium relative humidity (ERH) exceeds the internal aw of the package, a chemical potential gradient drives water vapor permeation through the flexible film boundary.

As water molecules diffuse inward across the flexible film barrier and heat-seal interface, they plasticize the kernel carbohydrate-protein matrix, lowering the glass transition temperature of the cellular walls and causing structural softening, sogginess, and mealiness. Beyond texture loss, elevated internal moisture acts as a solvent that mobilizes endogenous enzymes, such as lipases and lipoxygenases, which accelerate hydrolytic rancidity and cleave triglycerides into free fatty acids. Furthermore, if the internal aw surpasses 0.65 to 0.70 under elevated storage temperatures, the package environment crosses the physiological threshold for fungal sporulation and mold growth, introducing biological spoilage risks such as aflatoxin development.

Preventing this moisture-driven degradation requires the deployment of substrates with low Water Vapor Transmission Rates (WVTR). The barrier must withstand fluctuating ambient conditions, including high-humidity distribution channels common in tropical maritime logistics. Because water vapor diffusion follows Fickian transport mechanics through non-polar and polar polymeric pathways, managing WVTR depends not only on the intrinsic hydrophobicity of the barrier layer but also on the structural uniformity of the hermetic seals. An otherwise high-barrier film will fail if micro-capillary channels at the heat-seal interface permit vapor ingress, demonstrating the interdependence of substrate selection and sealing integrity.

Material Architecture: Multi-Layer Film Substrates and Barrier Properties

Monolithic polymers rarely provide the combined mechanical, optical, thermal, and barrier properties needed to preserve lipid-dense dry goods over extended supply chain cycles. Consequently, industrial flexible food packaging relies on multi-layer laminations. By joining distinct polymer webs, vapor-deposited metal layers, or solid foils through adhesive lamination or extrusion coating, converters engineer custom barrier substrates. Each layer delivers targeted functional performance to isolate the internal package environment from environmental degradation vectors.

A representative triplex foil structure combines an outer print web of 12 to 20 micron BOPET or BOPP for tensile strength and print optics, an intermediate adhesive tie-layer, a functional core barrier of 7 to 9 micron solid aluminum foil or 12 micron VMPET for gas and light isolation, a second adhesive tie-layer, and an inner sealant web of 40 to 100 micron cast PE, mLLDPE, or CPP for hermetic sealing and puncture resistance.

For companies evaluating multi-layer rollstock and pouch formats within broader flexible food packaging architectures, selecting the correct composite structure requires matching microscopic barrier mechanisms to target shelf-life demands.

Functionality of Core Polymeric and Metallic Layers

The architectural build of a flexible packaging laminate is organized into three primary functional zones: the outer surface layer, the intermediate barrier layer, and the inner sealant layer.

• Outer Surface Substrates: The exterior web provides mechanical strength, dimensional stability, thermal endurance, and visual graphics. Biaxially Oriented Polyethylene Terephthalate (BOPET, typically 12 microns) and Biaxially Oriented Polypropylene (BOPP, typically 18 to 20 microns) serve as standard outer layers. BOPET provides high tensile modulus, puncture resistance, burst strength, and thermal stability during contact with heated sealing bars. BOPP delivers high optical gloss or soft-matte visual options, along with basic moisture protection, though it provides lower thermal resistance than polyester webs during high-temperature form-fill-seal cycles.
• Intermediate Functional Core Barriers: The center layer serves as the primary barrier preventing the transmission of O2, water vapor, and actinic light wavelengths.
  • Solid Aluminum Foil (AL): Typically gauged between 6.0 and 9.0 microns, solid aluminum foil provides a dense metallic barrier that blocks molecular diffusion of gases and vapor when maintained without mechanical stress or pinholes. Because it reflects up to 98% of incident light across ultraviolet, visible, and infrared spectra, solid foil prevents photo-catalytic lipid degradation.
  • Vacuum-Deposited Metallized Films (VMPET / VMCPP): These substrates are manufactured by evaporating microscopic aluminum particles in a vacuum chamber onto a polymer base film (such as 12-micron PET or 25-micron CPP), yielding a reflective metallic deposition measured by optical density (typically 2.0 to 2.8 OD). Metallized films improve barrier performance relative to plain polymers while reducing package weight and material volume. However, the vapor deposition layer remains micro-porous compared to solid foil, allowing low rates of gas diffusion.
  • High-Barrier Polymeric Resins (EVOH / PVDC): When transparency is required, ethylene vinyl alcohol (EVOH) copolymers provide high resistance to oxygen migration under dry conditions. Because EVOH contains hydrophilic hydroxyl groups that plasticize and lose gas barrier capacity under elevated relative humidity, it must be co-extruded or sandwiched between hydrophobic polyolefin layers to preserve its barrier characteristics.
• Inner Hermetic Sealant Web: The product-contact layer provides hermetic bond formation, flexural durability, and puncture protection against hard kernel edges. Cast Polyethylene (PE) and Cast Polypropylene (CPP) blends, gauged between 40 and 120 microns, represent the standard sealant media. Linear Low-Density Polyethylene modified with metallocene single-site catalysts (mLLDPE) provides a wide heat-sealing temperature window, high hot-tack strength, and structural ductility, enabling the pouch to absorb dynamic drop stresses and maintain boundary hermeticity.

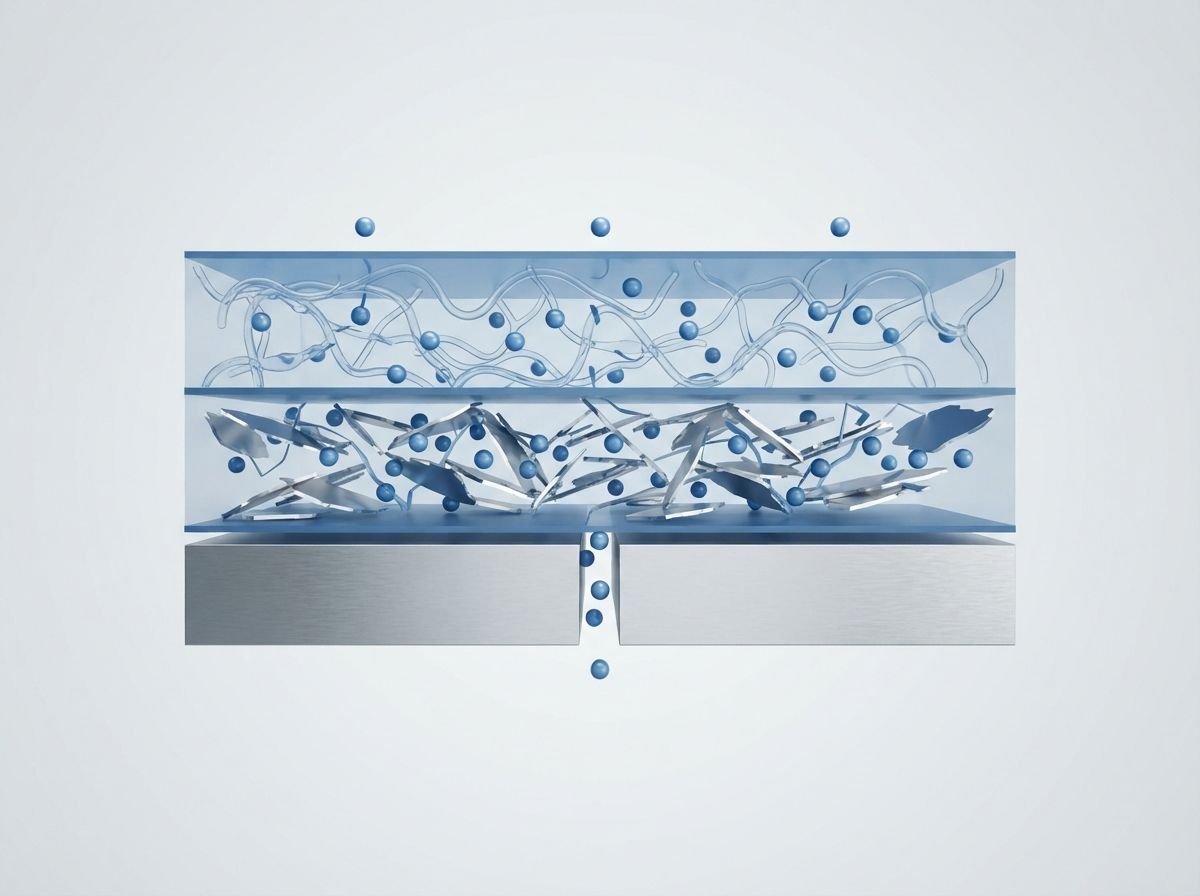

The diffusion mechanics differ fundamentally across these three substrate categories:

• Polymer Matrices: Gas and vapor molecules diffuse through dynamic free-volume pathways between polymer chains according to concentration-driven Fickian kinetics.
• Metallized Films: Overlapping vapor-deposited aluminum platelets create an elongated, tortuous diffusion path that forces migrating molecules to navigate around metallic flakes, lowering transmission rates.
• Solid Aluminum Foil: The continuous atomic lattice eliminates free-volume pathways entirely, replacing polymeric diffusion with a solid metallic boundary that blocks molecular penetration.

Comparative Transmission Performance

The transmission performance of multi-layer laminates is dictated by molecular diffusion physics. In polymeric webs, small gas molecules diffuse through dynamic free-volume spaces between polymer chains according to concentration-driven Fickian kinetics. Introducing vacuum-metallized platelets creates a tortuous diffusion path that forces migrating molecules to navigate around metallic flakes, lowering transmission rates. Solid aluminum foil eliminates this free-volume pathway, replacing polymeric diffusion with an atomic lattice barrier that blocks molecular penetration.

Engineering Decision Guidance for Table 1: Select two-ply Transparent PET/PE configurations only for rapid inventory cycles where retail display takes precedence over extended barrier life. For products distributed internationally or subjected to extended storage under unconditioned ambient environments, converters should specify three-ply metallized or solid aluminum foil structures to prevent lipid rancidity and moisture uptake.

Performance Trade-Offs: Visual Merchandising vs. Foil Barrier Integrity

Flexible packaging design often balances brand marketing goals against food preservation requirements. Retail marketing strategies favor transparent packaging windows that allow consumers to visually inspect nut size, kernel completeness, roast uniformity, and the absence of foreign debris. Conversely, food science and packaging engineering prioritize barrier protection, which relies on opaque aluminum foil or metallized substrates to isolate light-sensitive lipids from actinic oxidation vectors.

Window Placement and Localized Barrier Degradation

Integrating a clear window into a metallized or solid-foil flexible pouch requires either mechanical die-cutting of the barrier ply prior to lamination or chemical de-metallization using selective sodium hydroxide etching baths. Both approaches introduce structural vulnerabilities into the composite material. Removing the metallic substrate eliminates the atomic barrier layer within the window zone, leaving only the outer polymer web and inner polyolefin sealant to resist ambient gas permeation.

This structural alteration creates a localized micro-climate inside the package. While the foil-backed sections of the pouch maintain near-zero gas transmission, the non-metallized window area experiences elevated OTR and WVTR. Atmospheric oxygen and ambient moisture diffuse inward through this window zone, establishing a localized concentration gradient that accelerates lipid oxidation in adjacent kernels. In addition, differential thermal contraction along the etched metal border can introduce localized stress curling during heat sealing.

Furthermore, clear windows allow light penetration across the UV (290–400 nm) and short visible (400–500 nm) spectral bands. Photons in these wavelengths activate endogenous photosensitizers (such as riboflavin and residual chlorophyll derivatives), exciting ground-state triplet oxygen (3O2) into reactive singlet oxygen (1O2). Singlet oxygen attacks non-radical double bonds directly, accelerating hydroperoxide generation and resulting in rapid flavor deterioration.

Because of these mechanisms, deploying clear-window packaging requires matching format selection to retail inventory velocity. Transparent or windowed pouches are best suited for high-turnover retail environments where products move quickly through distribution channels.

For high-turnover snack programs and nut lines requiring direct product visibility, commercial operations often deploy a standardized transparent PET/PE stand-up pouch. This format provides baseline structural strength and moisture barrier properties while showcasing the product inside.

Hybrid and Zoned Laminate Solutions

To reconcile visual merchandising requirements with the technical demands of high-fat preservation, converters have developed hybrid structural options. One common format is the asymmetrical composite pouch, engineered with a transparent multi-layer front panel paired with a solid aluminum foil back panel.

This front-clear, back-foil configuration offers structural compromises:

1. Light Shielding Balance: The opaque foil back panel blocks light entry from the rear, while shelf positioning in standard retail racking shields the package underside. This arrangement reduces total photon exposure compared to fully transparent two-ply pouches.
2. Structural Balancing and Web Tension: Combining materials with different thermal expansion and tensile moduli—such as an all-polymer front web and a foil-bearing back web—can lead to web curl during high-temperature heat sealing. Converters address this by matching the elastic modulus and thermal shrinkage of the non-foil front panel to the foil-laminated back panel, ensuring the pouch remains flat across ambient temperature shifts.
3. Advanced Transparent Barrier Coatings: To reduce the barrier drop across the clear panel, converters apply vacuum-deposited inorganic ceramic coatings, such as Aluminum Oxide (AlOx) or Silicon Dioxide (SiOx), onto the base PET print film. These transparent ceramic layers, measuring nanometers in thickness, reduce polymer gas transmission while maintaining optical clarity.

For high-value nut programs that require both product display and protective backing, operations frequently implement a foil and clear nut pouch, which combines a transparent display panel with an opaque foil backing.

Processing and Sealing Integrity Across Different Nut Packaging Material Structures

A packaging substrate’s performance depends on how reliably it converts on commercial packaging equipment. Flexible laminates for nut products must withstand high web tensions, dynamic folding forces, abrasive product drops, and thermal heat-sealing cycles on automated Vertical Form-Fill-Seal (VFFS), Horizontal Form-Fill-Seal (HFFS), or rotary pre-formed pouch filling machines.

Puncture Resistance Against Rigid Nut Shells and Kernels

Nut packaging must handle mechanical point-loading caused by rigid, irregular product geometries. In-shell tree nuts (such as pistachios, walnuts, and hazelnuts) and hard-edged processed kernels (such as split almonds or roasted cashews) present sharp, rigid profiles. When product drops from automated multi-head weigh scales through packaging forming tubes, these edges strike the flexible film web at high velocities.

Preventing film punctures requires optimizing the inner sealant layer. Standard Low-Density Polyethylene (LDPE) resins often lack the molecular cohesion needed to absorb high kinetic point loads, leading to micro-fractures under point impact. Incorporating metallocene Linear Low-Density Polyethylene (mLLDPE) or co-extruded Polyolefin Plastomers (POP) improves mechanical performance. The narrow molecular weight distribution and uniform short-chain branching of mLLDPE provide elongation elasticity and tensile yield strength, allowing the polymer to deform viscoelastically around sharp kernel edges rather than puncturing.

Mechanical stress also influences the structural integrity of thin aluminum foil barrier cores (typically 7 to 9 microns). During automated bag forming across mechanical collars and downstream bulk packing into corrugated master cartons, foil laminates experience repetitive bending and folding.

These dynamic stresses can induce flex-cracking—the formation of microscopic fatigue fractures across the crystalline metal matrix. While the outer PET web and inner PE sealant may remain physically intact, micro-fractured foil loses its continuous barrier performance, permitting gas permeation. Minimizing flex-cracking requires using ductile aluminum alloys (such as EN AW-8079 or 8011 temper ‘O’ soft annealed foil) bonded with polyurethane laminating adhesives formulated to dissipate shear stress between the web plies.

Heat Sealing Dynamics and Seal-Through-Contamination Resilience

Hermetic seal formation represents the final step in establishing a controlled interior atmosphere. Achieving a consistent hermetic seal requires balancing three processing parameters: sealing temperature, clamping pressure, and mechanical dwell time.

In commercial nut packaging, filling lines generate airborne kernel dust, particulate fragments, and free surface oils. When products drop through the vertical forming tube, these contaminants can settle onto the open heat-seal interface. If the sealant resin lacks sufficient melt flow and contamination-absorption capacity, entrapped oil or nut dust creates micro-capillary channels across the seal width. These micro-voids compromise package hermeticity, allowing gas exchange and accelerating oxidative spoilage despite the use of high-barrier substrates.

To prevent contamination-induced sealing failures, converters formulate sealant films using low-crystallinity plastomers and high-melt-strength polyolefins. These resins melt quickly at lower seal initiation temperatures (SIT), developing high hot-tack strength that holds the molten seal seam closed while cooling. Under mechanical bar pressure, the molten resin flows around particulate debris and encapsulates surface oil films, fusing the opposing polymer interfaces into a solid hermetic boundary without micro-void leakage.

Nut Specificity Matrix: Matching Packaging Structures to Oil Profile and Shelf Life

Nut species vary significantly in their underlying lipid chemistry, physical morphology, processing preparation, and target distribution lifecycles. Specifying an optimal packaging structure requires matching the chemical vulnerabilities of the kernel to the functional barrier profile of the laminate.

Tree nut lipid profiles fall into distinct risk tiers based on their fatty acid configurations:

• Extreme Oxidation Risk: Varieties such as macadamias, walnuts, pecans, pine nuts, and Brazil nuts contain 60% to 76% total fat with high PUFA concentrations and low oxidative stability. These products require MAP nitrogen flushing paired with solid foil triplex substrates.
• Moderate Oxidation Risk: Varieties such as almonds, in-shell pistachios, roasted peanuts, and cashews contain 45% to 55% total fat, dominated by more stable monounsaturated oleic acid. These products permit the use of metallized VMPET webs or high-barrier polymer laminates.

High-Oil, High-PUFA Varieties Requiring Foil or High-Barrier Substrates

Certain tree nuts—most notably walnuts, macadamias, pecans, pine nuts, and Brazil nuts—possess extreme susceptibility to oxidative rancidity due to their high lipid content and fatty acid composition.

• Walnuts and Pecans: Walnuts contain approximately 65% total lipids, with polyunsaturated fatty acids accounting for over 70% of that oil fraction (primarily linoleic acid at ~55% and alpha-linolenic acid at ~10% to 14%). Alpha-linolenic acid contains two active bis-allylic methylene groups, making it susceptible to free-radical attack. Under ambient conditions, walnuts without barrier protection can develop elevated peroxide values within weeks.
• Macadamia Nuts: Macadamias contain over 75% fat. While dominated by monounsaturated palmitoleic and oleic acids, their high total lipid density means any hydroperoxide formation will generate noticeable sensory off-notes.

Supply chain logistics also dictate barrier requirements:

• Domestic Regional Distribution (1 to 3 months turnover): Ambient conditions remain monitored, allowing intermediate barriers like metallized VMPET or high-barrier polymeric webs.
• Global Maritime Export and Extended Storage (6 to 24 months turnover): Ship holds experience extreme heat, humidity, and salinity, necessitating near-zero barriers such as PET/AL/PE foil triplex with active nitrogen flushing.

Preserving these high-risk varieties throughout multi-month retail cycles or international ocean freight demands comprehensive barrier protection:

1. Near-Zero Gas Permeation: Packaging should utilize solid aluminum foil triplex laminates (such as 12 micron PET / 7-9 micron AL / 50-80 micron PE) combined with modified atmosphere packaging (MAP) to maintain internal oxygen levels below 1.0%.
2. Complete Actinic Light Exclusion: The continuous aluminum foil core eliminates light transmission across all wavelengths, preventing photo-sensitized free-radical generation.
3. Moisture Isolation: The foil layer prevents moisture migration in humid distribution environments, preserving kernel water activity within the target 0.20 to 0.30 aw range.

High-Turnover and Low-Fat Snacks Suitable for Polymer Laminates

Conversely, nut varieties characterized by lower overall fat content, higher proportions of stable monounsaturated oleic acid, or protective natural seed coats exhibit lower oxidation risks under standard distribution conditions.

• Almonds: Almonds contain roughly 50% total fat, with monounsaturated oleic acid comprising up to two-thirds of the lipid fraction. The low concentration of polyunsaturated linoleic acid provides higher stability against auto-oxidation than walnuts. Intact, un-blanched almonds with intact skins (outer testas) also benefit from naturally occurring polyphenol antioxidants that help resist free-radical propagation.
• Cashews and Peanuts: Cashews (~46% fat, high oleic profile) and peanuts (~48% fat, moderate MUFA/PUFA profile) show predictable degradation rates when kept dry. For these varieties, moisture absorption often causes texture loss before chemical rancidity reaches sensory thresholds.

For domestic retail markets with rapid inventory turnover (typically under three to six months), these lower-risk products do not always require heavy aluminum foil triplex structures. Intermediate packaging solutions—such as metallized three-ply composites (BOPP / VMPET / PE) or high-barrier transparent laminates featuring EVOH or AlOx barrier coatings—provide balanced protection at lower package weights.

To address moisture protection and shelf stability in fast-moving snack lines, operations often specify a metallized barrier nut pouch (BOPP/VMPET/PE) to balance moisture exclusion, puncture resistance, and cost efficiency.

Decision Guidance for Table 2: Processed, roasted, or seasoned nuts require elevated barrier specifications compared to raw kernels. Thermal roasting disrupts cellular walls, releasing free intracellular lipids to the kernel surface while degrading natural tocopherol antioxidants. Salt, seasonings, and trace metal catalysts on the surface further accelerate lipid oxidation, requiring higher OTR, WVTR, and sealing specifications.

Total Cost of Ownership and Procurement Criteria for Commercial Nut Packaging

Procurement decisions for commercial nut packaging materials should look beyond raw material surface-area cost (price per square meter). Packaging represents a functional component of the preservation process; selecting an inadequate specification can lead to commercial failure across the supply chain. A Total Cost of Ownership (TCO) model evaluates the balance between initial laminate material cost, operational line efficiency, package scrap rates, and downstream product losses caused by oxidation or moisture spoilage.

A robust TCO evaluation incorporates three cost pillars:

• Material Costs: Raw base film gauge, functional barrier substrate type, and print tooling or cylinder investments.
• Operational Conversion: Machine packaging speeds (units per minute), seal initiation temperatures, heating energy demands, and roll-stock scrap during changeovers.
• Risk and Post-Sale Factors: Spoilage scrap rates, unsalable retail returns, customer complaints, and transit puncture losses.

Material Unit Cost vs. Spoilage Scrap Economics

When comparing laminate configurations, procurement teams balance per-unit material costs against product shelf-life requirements:

1. Two-Ply Transparent Laminate (PET/PE): Lowest raw material unit cost. However, its high OTR and unshielded light transmission limit its use to short distribution cycles. Utilizing this structure for high-fat nuts in extended supply chains increases the risk of product oxidation, unsalable inventory, and retail markdowns.
2. Three-Ply Metallized Laminate (PET/VMPET/PE or BOPP/VMPET/PE): Represents an intermediate cost tier. Provides enhanced moisture barrier performance and partial light shielding. Suitable for stable nut varieties and standard domestic distribution cycles.
3. Three-Ply Solid Aluminum Foil Laminate (PET/AL/PE): Carries a higher raw material unit cost. However, for high-fat, high-PUFA nuts or international export cycles, its near-zero gas and moisture transmission provides the barrier protection needed to reduce product spoilage and maintain brand quality.

Under-engineering a packaging specification to capture short-term raw material savings can lead to net economic losses if product spoilage rates increase. If unsalable returns, rancidity complaints, and product recalls offset packaging material savings, the lower-cost specification generates a higher net operational cost. Procurement teams must model total lifecycle economics, ensuring barrier properties match distribution timelines and storage conditions.

Sustainability Realities and Future-Proofing Specifications

Packaging buyers face growing regulatory and consumer pressure to adopt sustainable, recyclable, and low-carbon packaging formats. In the flexible packaging sector, this transition centers on moving from unrecyclable multi-material laminates (such as PET/AL/PE or PET/PE) toward circular mono-material structures or down-gauged films.

Comparing barrier baselines illustrates the engineering trade-offs between formats:

• Standard Multi-Material Triplex (PET/AL/PE): Gauged at 12 micron BOPET, 7 micron solid foil, and 60 micron mLLDPE. Achieves OTR < 0.1 cc/m2/day and WVTR < 0.1 g/m2/day, but cannot be mechanically recycled in standard waste streams.
• Recyclable Mono-Material Polyethylene (PE/PE): Gauged with a 25 micron MDO-PE print web, a co-extruded EVOH or metallized barrier layer, and a 50 micron low-SIT mLLDPE sealant. Achieves OTR of 1.0 to 5.0 cc/m2/day and WVTR of 0.5 to 2.0 g/m2/day, maintaining circular stream recyclability (RIC 4) with moderate barrier performance.

However, transitioning high-oil nut products into recyclable mono-material substrates (such as all-PE or all-PP laminates) introduces technical challenges:

• Thermal Resistance Limitations: Traditional outer webs use oriented polyester (BOPET), which withstands sealing jaw temperatures exceeding 200 degrees Celsius without dimensional deformation. In an all-PE mono-material laminate, the exterior layer consists of Machine Direction Oriented Polyethylene (MDO-PE). Because MDO-PE has a lower melting point than PET, packaging machines must operate within narrower sealing temperature windows to prevent outer-web burn-through, requiring precise temperature control and low-SIT sealant layers.
• Gas Barrier Durability in Mono-Materials: Achieving low OTR and WVTR in mono-material polyolefin films requires integrating thin EVOH co-extrusions or vacuum-deposited AlOx coatings. While these structures maintain circular stream recyclability (RIC Code 4 or Code 5), their barrier layers can be vulnerable to flex-cracking under mechanical shear, requiring validation testing on high-speed packaging equipment.

Down-gauging offers another path toward sustainability. For example, transitioning a base specification of 12 PET / 9 AL / 70 PE (91 microns total) to an optimized 12 PET / 7 AL / 50 PE (69 microns total) achieves an approximate 24% reduction in total material mass. Implementation requires verifying drop impact endurance, pin-hole flex resistance, and seal hermeticity.

For procurement teams evaluating suppliers and converters, technical validation should center on five core questions:

1. What are the certified OTR and WVTR test values of the proposed laminate, measured under standard conditions (23 degrees C, 0% RH for O2; 38 degrees C, 90% RH for water vapor)?
2. What specific sealant resin formulation (such as metallocene LLDPE content percentage) is used to ensure hermetic sealing through ambient nut dust and oil contamination?
3. What soft-annealed alloy and temper designation is specified for aluminum foil cores to minimize flex-cracking during pouch converting and case packing?
4. How does the thermal stability of the outer web perform across the required machine speed (cycles per minute) on existing horizontal or vertical form-fill-seal equipment?
5. If evaluating recyclable mono-material structures (all-PE or all-PP), what barrier coating technology is used, and how does the barrier perform following mechanical elongation and fold stresses?

By framing procurement around these chemical, mechanical, and operational parameters, commercial nut processors can select flexible packaging materials that protect product freshness, maintain line efficiency, and optimize total ownership costs across global supply chains.

Conclusion

Selecting the appropriate flexible packaging structure requires aligning functional substrate barrier properties with the specific lipid profile and distribution timeline of the nut product. While high-PUFA varieties necessitate near-zero gas, moisture, and light transmission through solid foil or metallized triplex laminates, lower-fat or fast-moving snacks can leverage engineered polymer or hybrid configurations. Effective procurement evaluations must look beyond raw material surface pricing to consider total lifecycle costs, machine converting performance, puncture resistance, and seal integrity through product contamination. To evaluate barrier requirements and laminate configurations for specific processing lines, consult our packaging specialists.
